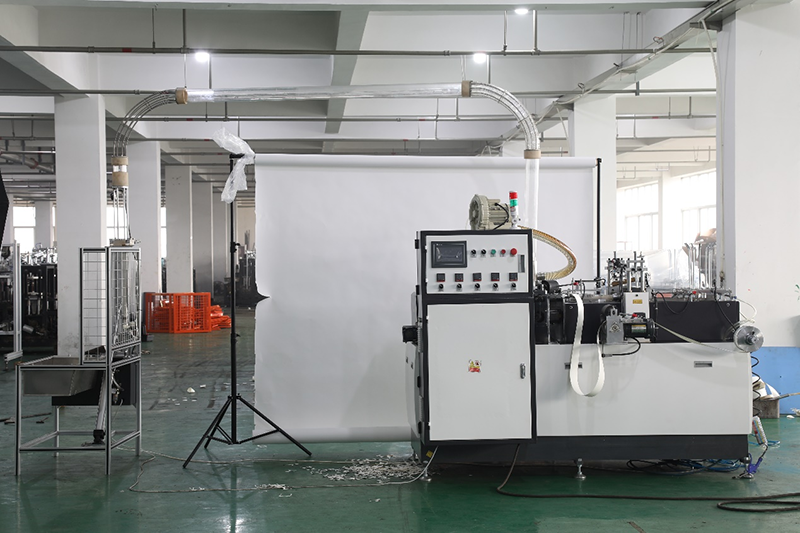

YT-LI-80 model 75-85pcs/min speed gear system open cam machine
YT-LI-80 model full automatic 75-85pcs/min speed open cam machine adopts open CAM and gear transmission system.machine run stably under high speed operation.Using hot air heating system, to keep cups no leaking under high speed.The parts are all made of standardized production,strong commonality,swap performance is good,easy to maintenance.The automatic lubrication system,closed,can ensure the machine long time continuous high-speed operation.Intelligent design,PLC automatic control,automatic fault alarm,count.testing,and stop action.The machine is a compact paper cup machine helping clients to save 60% shipment cost.
|
NO.
|
|
Item No.
|
Description
|
Unit Price
|
|
1
|
|
YT-Ll
|
Product Name:YT-Ll-80 Full automatic paper cup forming machine
|
FOB Ningbo
|
|
YT-Ll-80
|
Specs:
|
|
|
Machine kind: Open Cam with Gear System machine
|
|
Cup Size: 2-16oz（45-450ml)
|
|
Cup Raw Material: Single PE coated paper(140-200gsm)
|
|
Productivity: 65-85pcs/min
|
|
Power Source: 380V,220V,50Hz or other required
|
|
Total Power: 4kw
|
|
Weight: 1680kg
|
|
Gas source: 0.4-0.5m3/min
|
|
Panel: PLC and Touch Screen
|
|
Machine Size: 2100x970x1550mm
|
|
Description: YT-LI-80 Single PE Coated Paper cup machine is an automatic multi-working-station machine with Photosensor detecting, Failure alarming and counting. It's available for making oneside PE film coated paper cup against the procedure of automatic paper feeding, Sealing, silicon-oil lubricating, bottom punching, heating, knurling, curling and cup discharging. One-side PE paper cups are popular for tea, coffee, milk, ice cream etc. We have three different models of this machine
|
